[Music] every time you turn the key and hear that familiar Roar you're engaging with one of the most fascinating and essential components of your vehicle the engine today we're diving into the heart of automotive power exploring the intricate world of car engines car engines are marvels of engineering transforming fuel into the kinetic energy that propels us forward they come in in various shapes sizes and configurations but they all share a common purpose to deliver reliable and efficient performance to understand the inner workings let's break it down into three major components that play pivotal roles in
the engine's operation the cylinder head the cylinder block and the timing system cylinder head the crowning glory of the engine it houses the combustion Chambers valves and spark plugs think of it as the command center orchestrating the controlled explosions that gener generate power cylinder block the engine's sturdy Foundation this robust component contains the cylinders where the magic of combustion happens it also houses the Pistons connecting rods and the crankshaft transforming linear motion into the rotational power that drives your wheels lastly we'll explore the timing system the Maestro behind the synchronized dance of engine components timing

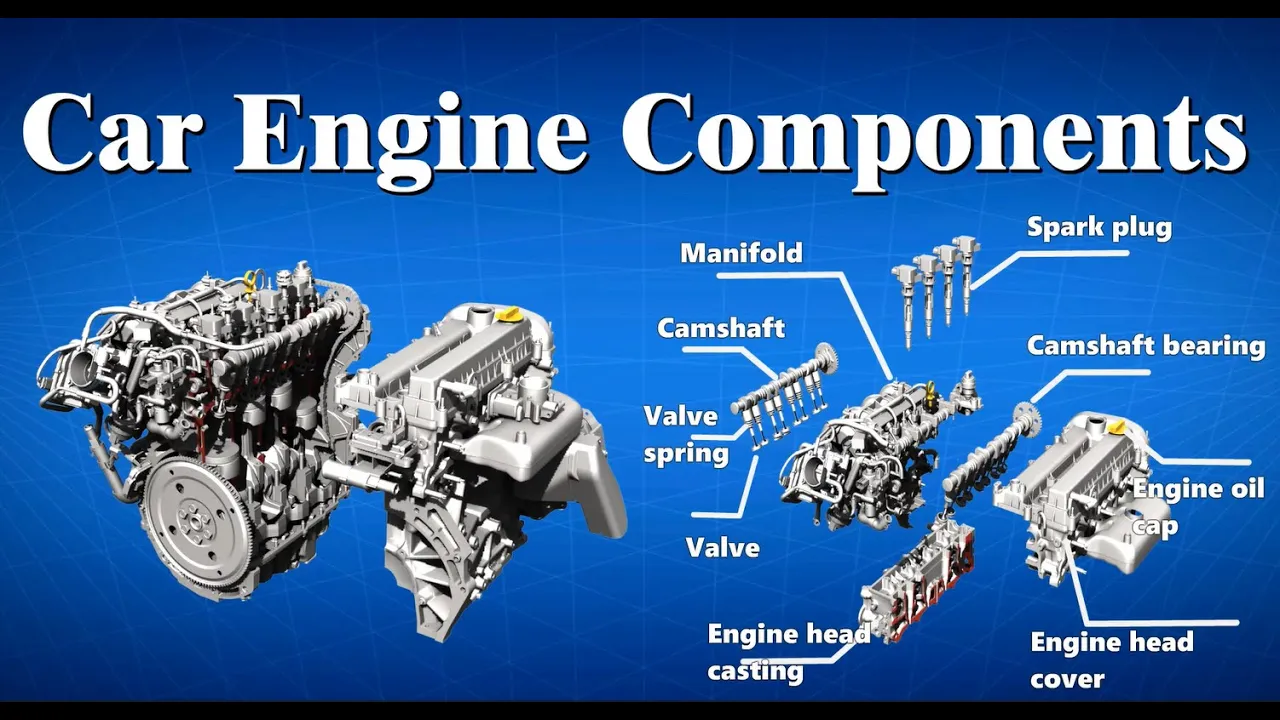

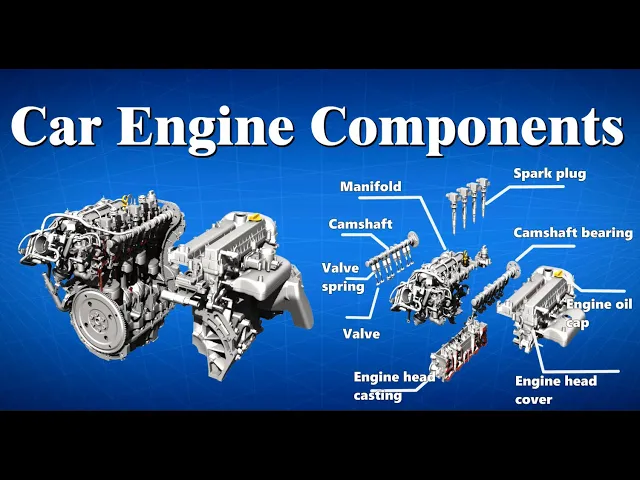

belts are chains ensure that valves open and close precisely coordinating with the Pistons movements to maintain Optimal Performance as we journey through the intricacies of these components you'll gain a deeper appreciation for the Symphony of engineering that powers your vehicle the cylinder head is a critical component of the engine housing several key parts that contribute to the combustion process let's break it down cylinder head casting cylinder heads are commonly made from cast iron or aluminum aluminum is preferred in modern engines for its lightweight properties aiding fuel efficiency cylinder head cover the cylinder head cover acts
as a protective shield enclosing the cylinder head and its intricate components it safeguards against debris and contaminants maintaining a clean and efficient engine environment engine oil cap the engine oil cap is like the gateway to the engine's life blood it covers the oil inlet ensuring that the engine stays lubric ated for smooth operation and reduced friction between moving Parts cylinder head gasket the cylinder head gasket forms a seal between the cylinder head and the engine block this ensures that the combustion chamber remains sealed preventing leaks and maintaining optimal pressure valves valves are typically made of
heat resistant Alloys such as stainless steel or titanium to withstand high temperatures valves act as Gatekeepers controlling the flow of air and exhaust gases in and out of the combustion ch chamber their precise movement is essential for optimal combustion and overall engine performance intake valves allow the air fuel mixture into the cylinder while exhaust valves let out combustion gases valve springs valve springs ensure that valves close promptly after opening preventing any unwanted backflow of gases these Springs are usually made of alloy steel and are designed to withstand repetitive stress valve taets or lifters transmit the
motion from the cam shaft to the valves they ensure that the valves open and close at the right time maintaining the engine's balance and performance rocker arms and push rods in push rod engines rocker arms transfer motion from the cam shaft to the valves via push rods rocker arms are typically made of steel or aluminum and push rods are often of Steel can shafts can shafts control the opening and closing of valves by converting rotary motion into linear motion overhead cam o HC systems have the Canam shaft located above the cylinder head can shaft cap
the Canam shaft cap secures and protects the cam shaft a key player in controlling valve movements it ensures that the cam shaft operates smoothly and precisely synchronizing with the engine's Rhythm can shaft bearings bearings are commonly made of materials like bronze or steel to reduce friction and supports smooth Canam shaft rotation spark plugs the spark plug a Tiny But Mighty component serves as the ignition source for the fuel in the combustion chamber during a compression stroke once the Piston going to reach TDC an electrical spark generated using a spark plug is used to ignite the
compressed air fuel mixture to produce energy coolant passages channels within the cylinder head allow coolant circulation to regulate temperature these passages connect to the engine's cooling system ensuring efficient heat dissipation intake and exhaust ports the design of intake and exhaust ports is a critical aspect influencing the efficiency of air flow in the engine factors such as Port shape size and Contour play a key role in achieving the desired turbulence and flow Dynamics ensuring the engine operates at its peak efficiency each of these components plays a unique role in the combustion process ensuring your engine runs
smoothly the spark plug ignites the fuel while the valves control the flow of air and exhaust now let's move on on to the second part the cylinder block the cylinder block serves as the foundation of the engine housing crucial components that play a vital role in power generation let's explore these components piston the Piston the engine's Workhorse moves up and down within the cylinder it transforms combustion energy into mechanical motion driving the crankshaft and propelling the vehicle forward the highest position of the Piston reaches in the cylinder is called the top dead center and the
lowest position is called the bottom dead center during a compression stroke the Piston moves from the bottom dead center to the top dead center this increases the pressure and temperature of the air fuel mixture once the Piston reaches the TDC the spark plug ignites the mixture and produces energy the thrust created due to the combustion of fuel pushes the Piston to BDC connecting rod the connecting rod links the Piston to the crankshaft converting linear piston motion into rotational motion this integral component is essential for transferring power within the engine cylinder block the cylinder block the
engine's Foundation houses the cylinders and provides support for key components it's the structural backbone that endures the stresses of combustion and supports the entire engine assembly crankshaft the crankshaft the backbone of the engine converts the re reciprocating motion of the Pistons into rotational motion it transfers power to the transmission and eventually to the wheels propelling the vehicle forward flywheel the speed and Torque from a car engine are not uniform because of this the vehicle does not travel at a uniform speed therefore the fluctuation affects the life of other parts to avoid this a flywheel is
used the fly wheel is mounted on the crankshaft to balance the vehicle speed the flywheel has two main functions first to store the energy generated in the power stroke and use it in the preparation stroke and second to ensure the uniform rotation of the crankshaft oil pan the oil pan or sump positioned at the bottom of the engine is the reservoir for engine oil it collects and stores oil ensuring a constant supply for lubrication coolant jackets coolant jackets are channels or passages in the engine block that allow coolant to circulate helping regulate the engine's temperature
these components work together harmoniously the Piston moves up and down converting fuel into mechanical energy the crankshaft then translates this linear motion into rotational motion now let's move to the final part the timing and drive belt systems the timing and drive belt systems are the Precision choreographers of your engine's performance ensuring every movement happens with perfect timing let's dive into the synchronized dance of these crucial components timing chain belt the timing chain or belt is the backbone of the engine's Timing System linking the crankshaft to the cam shaft it ensures precise synchronization between these two
critical components dictating the timing of valve and piston movements while both timing chains and timing belts serve a similar purpose in an internal combustion engine they differ in their construction and materials timing chain is made of metal typically steel while timing belt is made of reinforced rubber with toothed grooves the choice between a timing chain and timing belt is often influenced by factors such as cost engine design and manufacturer preferences some engines use timing chains for their durability While others opt for timing belts for their quieter operation and lower manufacturing costs camshaft sprockets intake and
exhaust think of the camshaft sprockets as the gear maestros they connect to the timing chain regulating the opening and closing of intake and exhaust valves influencing the engine's overall performance crankshaft sprocket the crankshaft sprocket connects to the timing chain and is responsible for synchronizing the rotation of the crankshaft with the cam shaft this coordination is vital for maintaining precise valve and piston timing timing chain cover the timing chain cover protects the timing chain and Associated components it also houses the timing marks facilitating proper alignment during maintenance and ensuring precise coordination within the engine now let's
switch our Focus to the drive belt system also known as the serpentine belt this belt is a multitasker driving various engine components such as the air conditioning compressor water pump and alternator it ensures that these components work in sync to support your vehicle's electrical and cooling systems water pump tucked away near the heart of the engine the water pump is an unassuming yet crucial component that plays a vital role in maintaining the optimal temperature for your engine's performance its primary task is to circulate coolant ensuring that your engine stays cool under the hood even when
things heat up tensioner and idler pulley the tensioner pulley in the drive belt system maintains proper tension ensuring the serpentine belt stays snug and efficient in driving the various engine accessories The Idler pulley in the drive belt system helps maintain tension and Alignment ensuring smooth operation of the the serpentine belt these components whether in the timing or drive belt system work together in precise coordination regulating the opening and closing of valves driving engine accessories and optimizing overall engine performance this synchronization ensures your engine operates with efficiency and reliability as we conclude our exploration of the
internal combustion engine we've unveiled the intricate World beneath the Hood by dissecting three crucial components the cylinder head cylinder block and timing system in the first part we delved into the cylinder head where combustion takes Center Stage from the casting that forms its structure to the valves and spark plugs orchestrating the combustion dance every element plays a vital role in propelling your vehicle forward moving to the heart of the engine the cylinder block we discovered the foundation that houses the Pistons connecting rods and crankshaft these components work in harmony to transform combustion energy into mechanical
motion creating the power that drop drives your vehicle finally we explored the timing system the conductor of the engine Orchestra the timing chain camshaft sprockets and various tensioners ensure precise coordination regulating the opening and closing of valves and the movement of Pistons this synchronization optimizes engine performance together these three components form a symphony of mechanical Precision turning fuel into motion and powering your journey we hope you enjoyed this educational Journey Into the Heart of your vehicle engine remember each component plays a crucial role harmonizing to make your drive a smooth and Powerful experience
