How to build a community IPTV system with 2,000 users and 100 live programs?

how to build a IP TV system for a community let's start with a case study here is a community of 2,000 users and 100 live channels project requirements what equipment do we need according to the ipv diagram we can know that there are three parts front end ipv server and terminal the frontend receiving equipment includes FTA satellite receiver receiver with camci slot for paid channels encoder for processing local programs Etc the second part is the ipv community version server part three terminals like Android Smart TV set toop box an Android phone or tablet what's exciting

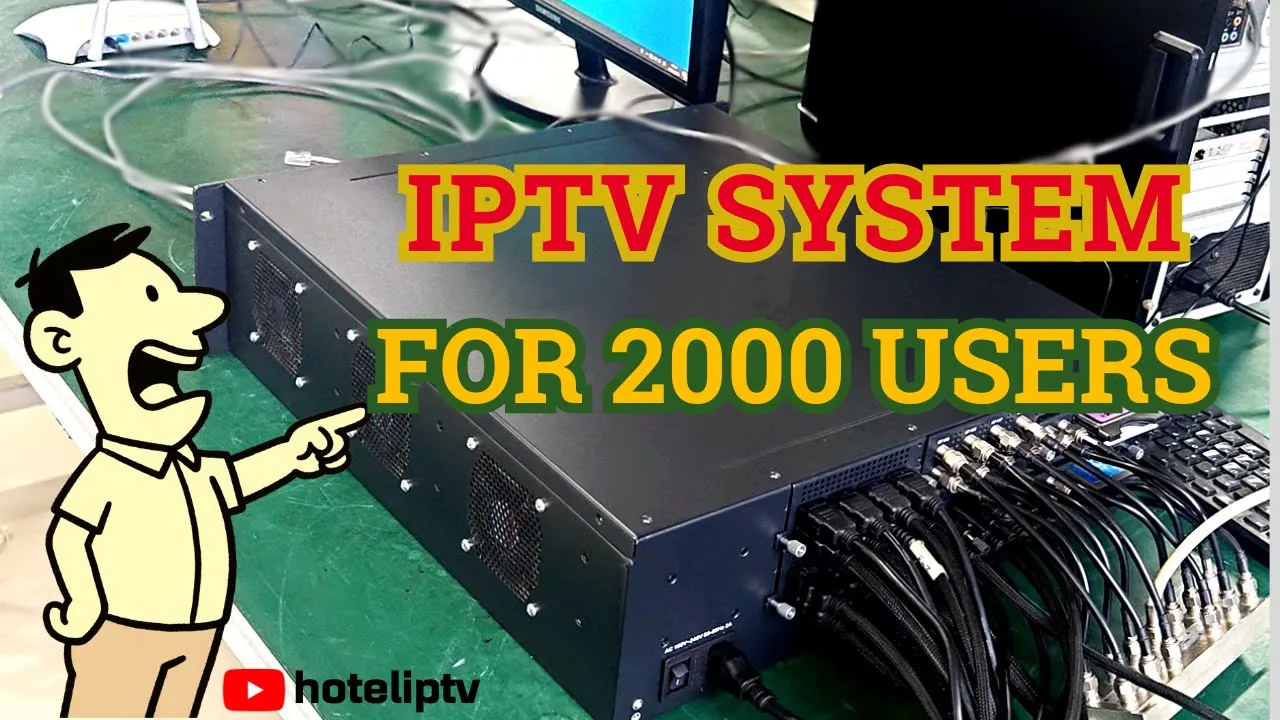

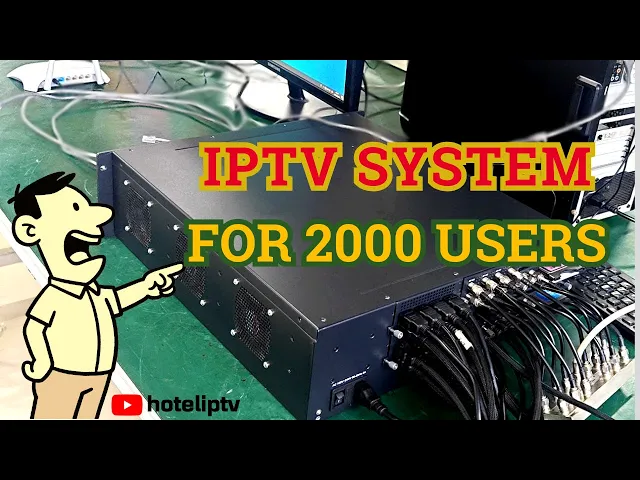

is that the 8100 series ipv server integrates the front-end receiving equipment and the ipv server only one device is needed on the rack to build the entire ipv system 81 100 ipv streamer server let's look at the appearance of 8,100 IP TV server for the backside it supports Max six plugable streamer cards such as encoder card tuner card to receive the audio video signals or RF signals Etc 8 HDMI encoder card receiver with camci SL for SDI encoder or IP to RF card for the front size IP inputs through eth1 to 5G ports over SRT

HTTP UDP spts RTP spts rtsp over UDP payload mpegts and hls nms for web management IP outputs through e0 F6 E7 over SRT HTTP unicast UDP spts multicast RTP rtsp hls and rtmp [Music] ipv server is a professional server and integrated ipv middleware receives TV signal sources via the Internet or land convert protocols distributes programs to terminals manages terminal users realizes interactive communication on demand highdef program live broadcast portal customization and advertising value added Services Etc it is also integrated with Community software including Community customized interface welcome user grouping charging property notification advertising pay-per-view and

up functions how to install 8,100 IP TV streamer and server wires connection the project has 24 channels from local Studio 26 paid channels from satellite and 50 free channels from satellite total is 100 live channels here we used three HDMI encoding cards SD 85228 HDMI encoder card video format hevc/h.265 MPEG 4 AVC h.264 two pieces of tuner scramming card ST 9948 card has two tuner as input and two CI slot one card Max can output 16 channels st338 A8 FTA dvbs2 tuner card streaming 8 tuner input F Type stream out 512 spts out over UDP

SL RTP rtsp unicast SL multicast let's connect the cables firstly step one connect friend and receiving connect HDMI cables [Music] [Music] connect tuner's port with spider [Music] the splitter is already connected with Dish by coaxial [Music] cable insert camci cards to encrypt the page channels operation here we have completed the frontend equipment wires connection step two connect ipv server with network connect computer with switch connect 8100 th3 port with switch for web management the output Port one of 8,100 is connected to the switch the Box cable connects to the switch setting the server parameters fill

in the server IP address then enter the login interface fill the account and password and we enter the server web management interface module management enter module management interface there are six subm modules as input we can see the corresponding module status light is on dot when the subboard is receiving the signal set parameters for each input module setting encoding subm module such as resolution bit rate select encoding type Etc set output IP address Port an output bit rate Etc if you need to add logo QR code scrolling subtitles to the program operate them on the

OSD interface multi-channel CI receiver module need to set frequency symbol rate and other satellite parameters Set cic Card parameters and output address Etc after completed the settings of all input sub modules we need to load the programs click streaming media select protocol conversion add live programs add program name the channels are from encoding subm module one select the program to be edited choose the output protocol submit click distribute you can see the real time bit rate of each program being pushed and the two new programs have been added successfully add the other programs in the

same way ipv middleware web management enter the IP address of the community middleware web then enter the administrator's account and password we can manage end users edit programs add advertisements customize the homepage set administrator permissions Etc manage program click program button to manage them add program ID name stream URL and upload program logo click live package select programs and package them in this interface we can edit the program packages ID name icon and select the programs we need click program package pricing of program packages here we we pric the program package pkg1 at $10 we

price the program package pkg1 at $10 next we start to set VOD upload the movie choose the movies to be played and add movie information manage users click client button to enter the user management interface we can see all user information username registration time weather online program packages purchased Etc click package management button we can see which program package is purchased in validity when a user purchases a new program package we can update it here here in this interface we can see all the program packages purchased by the user Authority if the administrator needs to

assign client management and program management to the subordinate need come to the authority inter interface assign the manage role assign the tasks of edit program add advertisement and custom to different manager roles in the manager interface add the manager's name password and select the manager's role Bell 123 to manage users log into Star 123 to edit programs [Music] system setting includes live channels protocols box playback engine selection registration for mobile phone login verify Mac for mobile phone login it is an interface for integration with third parties play after installation we can play the programs now

click y enter the community ifp homepage we can custom the homepage picture boot video and logo seawater most importantly a domestic Supply uranium was needed to M 9% of its rides don't involve a safety inci this according to first ever safety report back in 2021 but one woman is speaking out out to South Korea whether we target more items it's possible that [Music] speech [Music] speech spee for you up and F let you die [Music] foreign spe oan [Music] 1 2 3 4 [Applause] [Music] [Applause] [Music] [Applause] hey good morning got a warning from a
