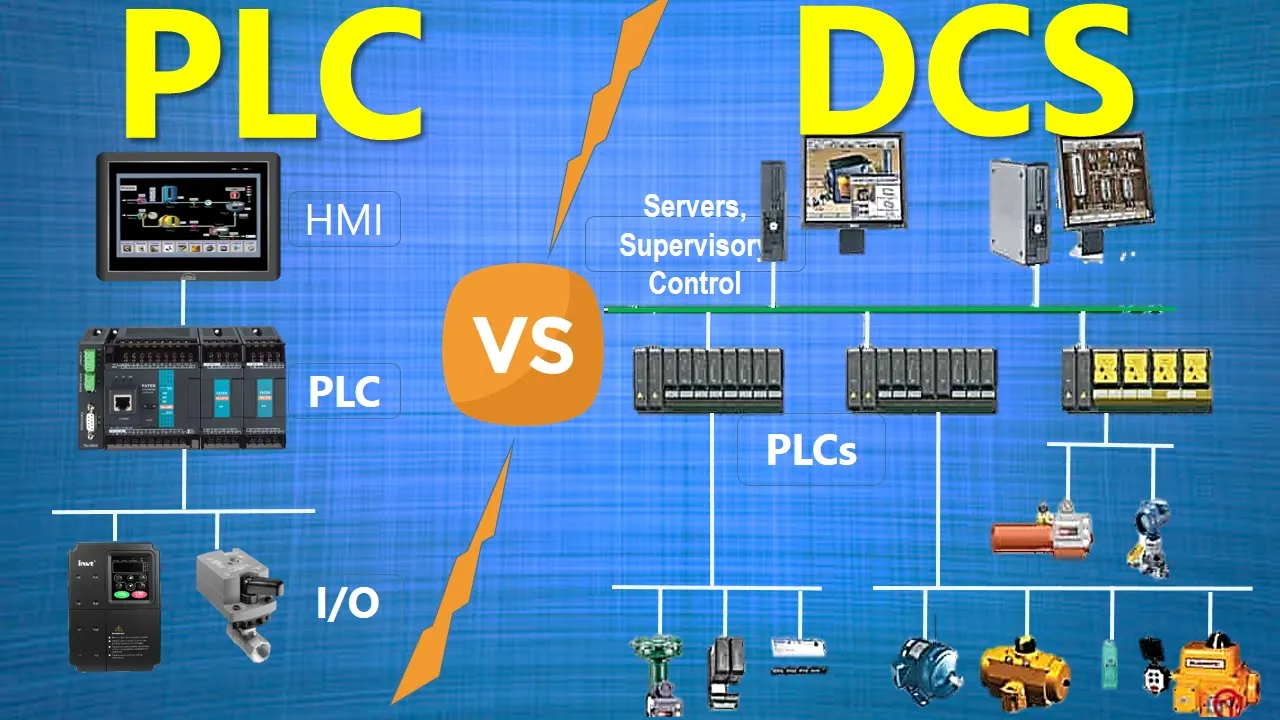

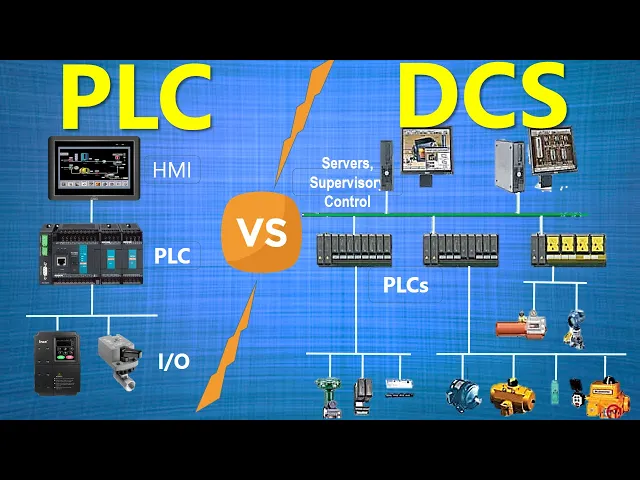

in Industrial Automation both programmable logic controllers PLC and distributed Control Systems DCS play pivotal roles in managing and controlling complex processes however these two technologies differ significantly in their architectures applications and capabilities let's find out the distinctive features that set PLC and DCS apart PLC is a single entity designed to control one machine or a process whereas DCS is a complete system distributed over a large Network designed to control entire plants buildings or processes PLC comes in various sizes and capabilities capable of handling tens of hundreds of digital inputs and outputs and few tens of
analog IOs Pro expansion modules and network connection DCS can support IOs multiple times than PLC it can easily handle hundreds of thousands of digital IOs or even thousands of analogs IOs and PID functions PLC can be programmed based on our application mostly ladder logic is used to program the PLC DCS comes with built-in control functions that need to be configured according to its various uses the response time of PLC is one tenth of a second it means PLC is faster than DCS DCS is slower than PLCs. the typical response time of DCS is 30 milliseconds
PLCs have a simple and flexible architecture a PLC system consists of CPU i o modules expansion modules HMIs and Engineering software DCS systems are less flexible they come with multiple controllers, IO systems, database servers engineering and operating servers. based on application the PLCs are designed for controlling machines such as a lathe machine in which the PLC handles the operation of a single machine the DCS control the complete process like a car manufacturing Factory or multiple machine operations are to be handled at various locations cost wise the PLC is cheaper than DCS. I hope you understand
the basic differences between PLC and DCS for more interesting videos stay tuned and don't forget to subscribe
