Pulseer Assembly Guide

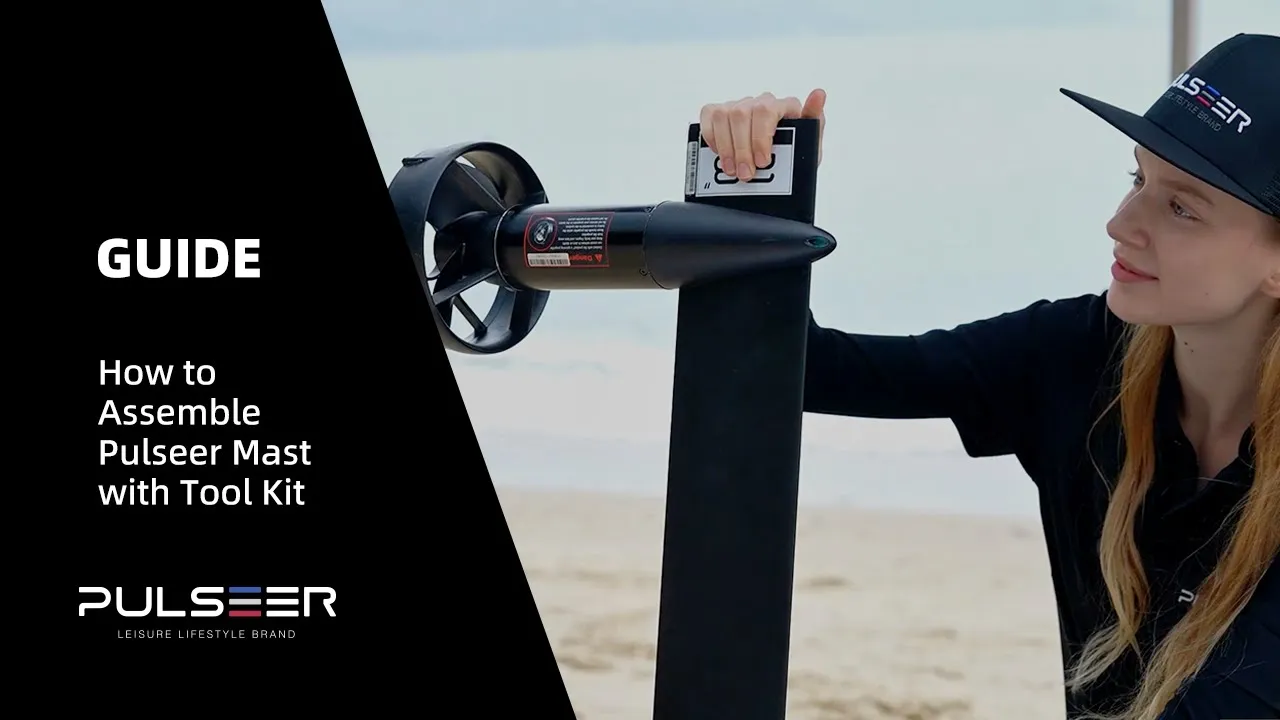

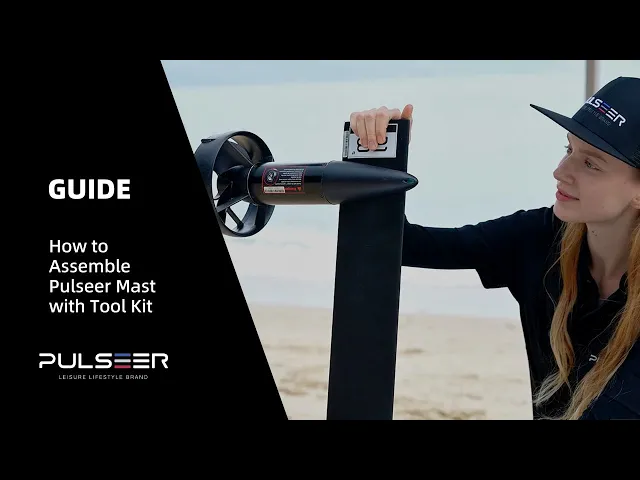

thank you for choosing pulser efoil board here is the guide for assemble your pulser efoil board first let's find the Mast and board you can see the top of the Mast has a Rubber seal on the surface with a three-phase connector and one blue water tube take the cables of Mast through the port at the bottom of the board and there are four screw connectors that fix the mast at the bottom of the board use a wrench to secure the Mast with M8 [Music] screws before fully tightening check if the Mast is assembled properly to

ensure a secure connection and fixation use a wrench to tighten each screw at least twice after assembly the Mast should be firmly secured to the edges at the bottom of the board then take out the electric hydrofoil wings and connect the wings with MK use M8 screws to attach the efoil wings to the MK tighten the screws again open the battery compartment [Music] door there is a three-phase connector and a blue water pipe for the propulsion unit connect the blue water pipe match the colors and connect the three-phase connector to the control box pay attention

to matching connection colors if connected incorrectly the motor will reverse ensure that both O-rings are fully inserted place the battery into the battery compartment secure it with a latch insert the battery connector into the battery and twist the cam lock connector 90° [Music] securely connect the data cable using the interface ensuring you hear a clicking sound press the power button to start the system for the first startup match the remote controller press the remote matching button on the control Box's side at this moment the power light will go out entering the remote matching State take

out the remote controller and press three buttons at the same time when you see the matching interface completed the control Box's lights will illuminate and recover apply a slight throttle to the remote controller check if the propulsion unit is working correctly under normal conditions the propeller blades will rotate counterclockwise if not check the phase connector plug to ensure color matching close the cover plate and fasten the lock [Music] Buckle then the assembly is complete and we can start to move it into water then the assembly is complete and we can start to move it into

water if you have any question please feel free to contact our after sales team support at pulsers support.com for more information
